Recreational · Platform Calidus
Calidus
A sleek tandem gyroplane — smooth, stable, fast, with a view all around.
Smooth. Stable. Fast.
The super-sleek Calidus is AutoGyro's two-seat tandem gyroplane with an enclosed cabin. When it was released in 2009, it was the world's first formally certified factory-built gyroplane of this configuration. It is loved not only for its looks and for being amazing fun to fly, but also by flight schools, sightseeing operators and law enforcement agencies.
Sharp aerodynamics make the Calidus a fast cruiser, and its 74-litre fuel tank gives it a huge range — extended further by the optional 100-litre tank. The large, clear canopy gives pilot and passenger an amazing 360° view while keeping them warm, dry and comfortable.
Ventilation? Yes — in several ways
- fully enclosed canopy with ventilation windows,
- open-sided canopy, where large side windows let in plenty of air,
- high-headroom canopy for very tall pilots,
- fully open-top canopy.
Like every enclosed AutoGyro aircraft, the Calidus also has a proper heating system. Whatever the location or season, there is always a way to keep warm — or keep cool.
A pedigree you can trust
With over 500 released to service since 2009, AutoGyro has a vast depth of reliability experience around the world, whether the aircraft is flown for fun or for reward. Operating environments around the world can be harsh, and AutoGyro takes pride in its aircraft meeting that standard. Backed worldwide by the factory and its partners, you can be sure you will be well looked after.
Technical specifications
| Parameter | Value |
|---|---|
| Dimensions: L × W × H (excluding rotor) | 4.8 × 1.7 × 2.8 m (15.7 × 5.6 × 9.2 ft) |
| Rotor diameter | 8.4 m / 8.6 m / 8.8 m (27.6 / 28.2 / 28.9 ft) |
| Empty weight | 300 kg (660 lb) |
| MTOM (maximum take-off mass) | 500–560 kg (1,100–1,235 lb) |
| Engine | Rotax 912 ULS / 914 UL / 915 iS / 916 iS ¹ |
| Take-off distance | 70–110 m (230–360 ft) |
| Take-off distance to clear a 15 m obstacle | 250 m (820 ft) |
| Max. endurance | up to 4.5 h ² |
| Max. range | up to 600 km (370 mi) ³ |
| Cruise speed | 90–185 km/h (55–115 mph) |
| Max. speed (VNE) | 225 km/h (140 mph) |
| Fuel capacity | 74–100 L (19.5–26.4 US gal) |
| Complies with | BUT (Germany), BCAR Section T (UK), ASRA (Australia), CCAR-21 (China), US Primary Category, US Experimental Category |
- ¹ Values shown for 500 kg take-off weight.
- ² Typical aircraft configuration: 1 pilot (80 kg), 40 L fuel, 2,000 ft MSL.
- ³ Typical aircraft configuration: 1 pilot (80 kg), full tank, 2,000 ft MSL.
- Figures reflect basic aircraft capability. Actual performance and limitations depend on national airworthiness requirements — ask us for details.
Pilot Operating Handbook (POH) — Calidus (opens the manufacturer's website)

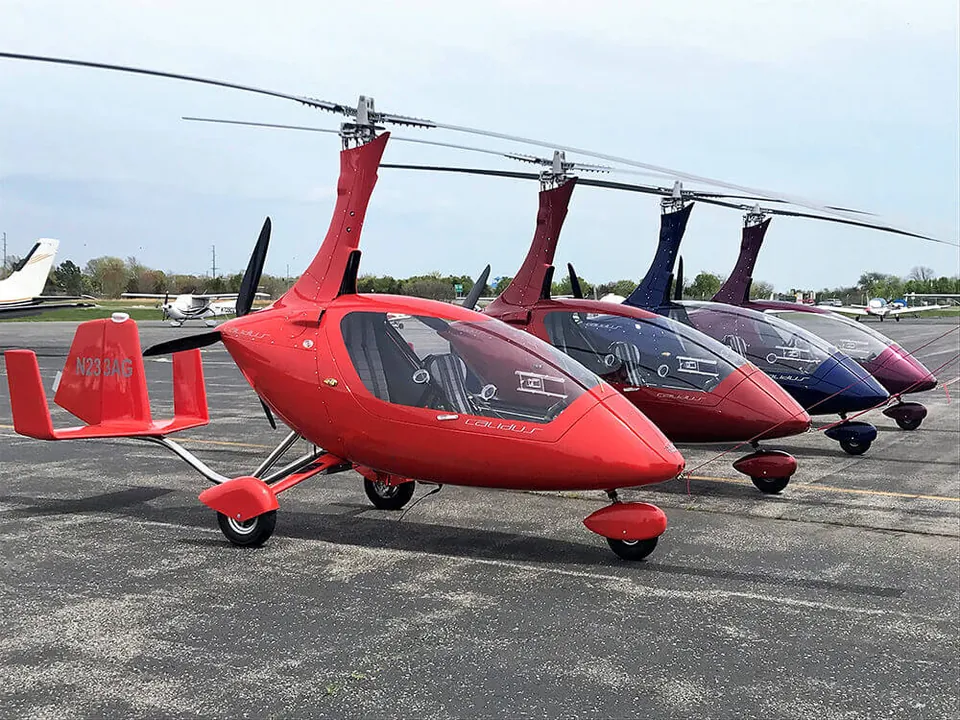

Gallery
Manufacturer's material: AutoGyro GmbH, Hildesheim.
