Professional · Platform Cavalon
Cavalon Amphib

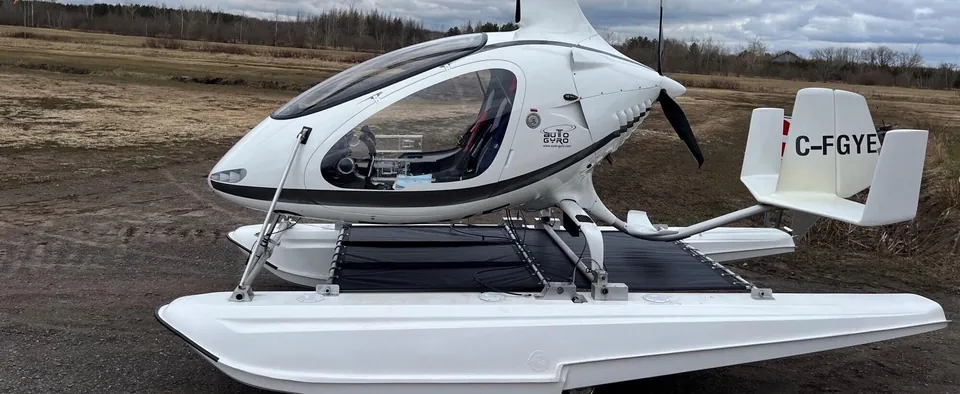

Amphibious Cavalon on floats with retractable gear — for work over land and water.
A land and water platform for professionals
The Cavalon Amphib is a land and floating platform designed for professional use. It is equipped with floats and retractable gear, a powerful Rotax 915 — or even 916 — engine and modern avionics. Its well-proven floats allow smooth take-offs and landings on water, while the pneumatically lowered landing gear makes operating from normal airfields easy. Safety features include LED gear position and locked indicators. A robust airframe and modern avionics provide safety and reliability in the air and on the ground.
Comfort and versatility
The spacious cabin and ergonomic seats keep passengers comfortable, and the large windows give panoramic views — making the Cavalon Amphib a good choice for passenger transport and scenic tours. It is also suited to in-shore and off-shore coastal patrol, offshore oil and gas operations, aerial photography, search and rescue, cargo transport and more.
Whether you need an aircraft for marine or land operations, the Cavalon Amphib is ready for the job. Tell us about your mission and we will find the right configuration.
Technical specifications
| Parameter | Value |
|---|---|
| Dimensions: L × W × H (excluding rotor) | 4.6 × 1.9 × 2.8 m (15.1 × 6.2 × 9.2 ft) |
| Rotor diameter | 8.4 m / 8.6 m / 8.8 m (27.6 / 28.2 / 28.9 ft) |
| Empty weight | 365 kg (805 lb) |
| MTOM (maximum take-off mass) | 560–600 kg (1,235–1,323 lb) |
| Engine | Rotax 914 UL / 915 iS / 916 iS |
| Take-off distance | 110 m (360 ft), depending on water conditions ¹ |
| Take-off distance to clear a 15 m obstacle | 260 m (850 ft) |
| Climb rate | up to 6.6 m/s (1,300 fpm) |
| Max. endurance | up to 6 h ² |
| Max. range | up to 600 km (370 mi) ² |
| Cruise speed | 90–185 km/h (55–115 mph) |
| Fuel capacity | 100 L (26.4 US gal) |
| Complies with | TCCA airworthiness certification (Canada), US Experimental Category |
- ¹ Typical aircraft configuration: 1 pilot (80 kg), 40 L fuel, 2,000 ft MSL.
- ² Typical aircraft configuration: 1 pilot (80 kg), full tank, 2,000 ft MSL.
- Technical data may vary according to country-specific legal requirements.
Pilot Operating Handbook (POH) — Cavalon (opens the manufacturer's website)
Gallery
Manufacturer's material: AutoGyro GmbH, Hildesheim.
Let's talk about your mission
We will match the model and equipment to your needs — from recreational flying to public-service missions.
